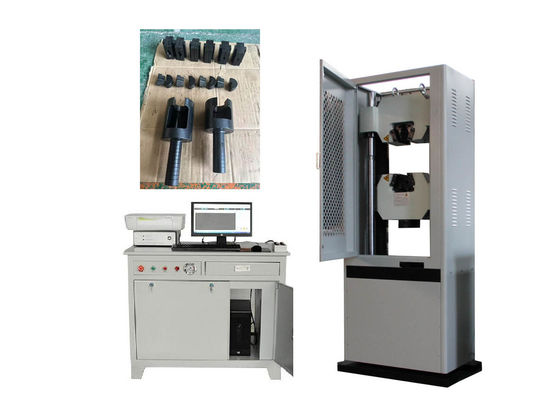

100 200 Ton 300KN 600KN 1000KN 2000KN Servo Hydraulic Testing Machine for Tension Compression Bending and Shearing Tests

The 100/200 Tons (300KN/600KN/1000KN/2000KN) Hydraulic Steel & Metal Universal Tensile Strength Testing Machine is specifically engineered for mechanical property testing of metal materials. It is capable of performing core tests including tension, compression, bending, and shear. Equipped with standard accessories and auxiliary devices, the machine can be extended to conduct a wide range of mechanical performance evaluations, meeting diverse testing requirements in metal processing, manufacturing, and quality inspection fields.

• The hydraulic cylinder is mounted at the bottom of the load frame.
• Tension testing space is located at the upper section of the load frame.
• Compression and bending testing spaces are positioned between the lower crosshead and the worktable.
• The lower crosshead is driven by a motor via a reducer, chain drive mechanism, and lead screw assembly--enabling precise adjustment of the testing space to accommodate samples of different sizes and test types.

This hydraulic universal testing machine employs a high-precision load cell for load measurement, ensuring accurate and reliable force detection. It integrates computer-based control and real-time load display functionality, enabling intuitive operation, data acquisition, and test result analysis--significantly improving testing efficiency and data traceability.

We have significantly enhanced our independent R&D capabilities and established an in-house machining center, enabling us to independently manufacture core components. This vertical integration achieves cost optimization across supply chain links without compromising product quality--a key advantage that sets us apart.

Our high-quality testing instruments deliver greater long-term cost savings compared to low-cost, inferior alternatives on the market. By minimizing equipment failure rates, we not only reduce customers' maintenance and repair costs but also boost the machines' operational efficiency--ensuring uninterrupted testing workflows.

This exceptional cost-performance ratio translates into tangible, sustainable benefits for customers, balancing reliable quality, reduced total cost of ownership (TCO), and improved productivity.

ISO 6934 BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTME9, ASTMA615, ISO6892, ISO7438, ISO7500-1, ISO 15630 EN10002-4, GB/T228-2002, GB 16491-2008, HGT3844-2008 QBT 11130-1991, HGT 3849- 2008,GB6349-1986, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

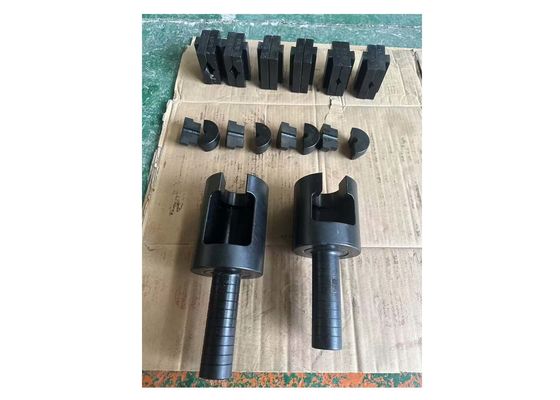

The test machine's design fully incorporates compatibility with additional fixtures, enabling expansion to a broader range of test applications. This flexibility allows the machine to adapt to diverse testing needs through fixture configuration, such as:

• Equipped with bolt fixtures: It can perform bolt tension tests and load-bearing verification.
• Paired with bending fixtures: It supports bending tests for round bars or plate materials.
• Fitted with shear clamps: It enables shear strength testing of round bars.
• In the compact compression test space: When combined with anti-bending, shear, splitting fixtures, and elastic modulus meters, it can conduct tests on concrete and cement specimens (e.g., anti-bending, shear, splitting, and elastic modulus measurements).
• Configured with dedicated fixtures: It can complete specialized tests for products including steel balls, anchor chains, and fasteners.

This fixture expansion design maximizes the machine's versatility, eliminating the need for additional specialized testing equipment and reducing overall investment costs for customers.
