304 Stainless Steel Plastic Pipe End Caps

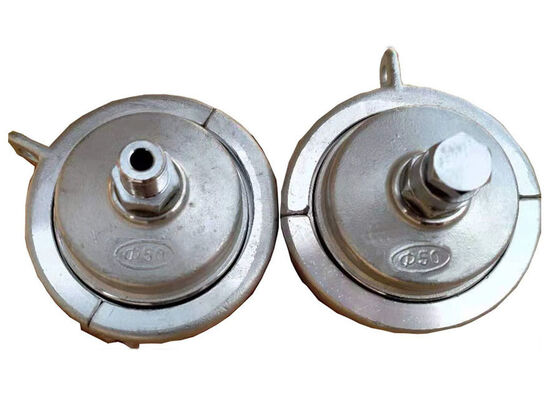

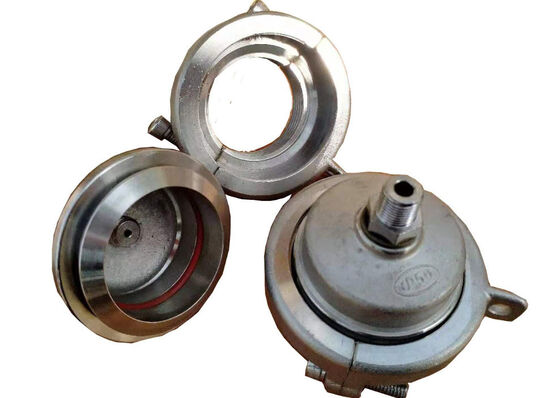

Silvery white 304 stainless steel Plastic Pipe End Caps designed for precision casting and meeting ISO1167 sealing requirements.
Product Overview
Featuring high-temperature resistant silicone seal rings firmly embedded within dedicated seal grooves, our Plastic Pipe End Caps deliver exceptional sealing performance. Equipped with a standard seal ring of φ48*5mm, the assembly forms a robust and airtight sealing structure to meet rigorous testing demands.
This end cap assembly demonstrates outstanding resistance to hydrostatic pressure, making it an optimal end-shield component for short-term pressure tests that verify the leaktightness of pipe assemblies. It also serves as a professional end closure solution for conducting long-term hydrostatic strength evaluations of plastic piping systems.
Suitable for both water pipeline testing and gas pipeline testing applications, these Plastic Pipe End Caps are constructed from high-performance engineering materials for enhanced durability and extended service life.
Technical Specifications
| Attribute |
Value |
| Product Category |
Plastic Pipe End Caps |
| Type |
A |
| Material |
304# Stainless Steel |
| Color |
Silvery white |
| Meet Standard |
ISO1167, ASTM D 1598/1599 |
| End Cap Connector |
M12*1.25, 1/4'' (customizable) |
| Outline Dimension |
φ95*80mm |
| Size of Seal Ring |
φ48*5mm |
| Applicable Pipe Diameter |
φ75~φ75+0.8mm |
| Weight |
3KG |
Applications
The JINHAIHU XGY Plastic Pipe End Caps are engineered for versatile application scenarios across multiple testing contexts, being broadly suited for the sealing of water pipes, gas pipes, and oil pipes during various performance tests.
Designed with user-friendly operation in mind, these end caps are applicable to both short-term pressure tests for verifying the leaktightness of pipe assemblies and long-term hydrostatic pressure tests. Boasting a maximum pressure rating of 10MPA, they can meet the rigorous requirements of diverse testing applications.
Support and Services
Our Plastic Pipe End Caps are professionally engineered to deliver a hermetic and secure seal for the ends of plastic pipes during testing procedures. They are available in a comprehensive range of size specifications, constructed from premium-grade materials to guarantee long-term durability and consistent reliability.
- Professional product installation guidance and on-site operation advice
- Comprehensive compatibility verification with various plastic pipe specifications
- Timely troubleshooting assistance for any operational issues
- Professional product performance optimization suggestions to enhance testing efficiency
Frequently Asked Questions
What brand do these Plastic Pipe End Caps belong to?
These Plastic Pipe End Caps are officially branded JINHAIHU.
What is the specific model designation of these Plastic Pipe End Caps?
The model number assigned to these Plastic Pipe End Caps is XGY.
What quality certifications are held by these Plastic Pipe End Caps?
These Plastic Pipe End Caps have obtained ISO9001 quality system certification.
Where are these Plastic Pipe End Caps manufactured?
These Plastic Pipe End Caps are produced in Beijing, China.
What is the minimum order requirement for these Plastic Pipe End Caps?
The minimum order quantity (MOQ) for these Plastic Pipe End Caps is 1 set.
What payment methods are accepted for these Plastic Pipe End Caps?
The accepted payment terms include T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
